FR - Crane in PLA

This article was published Jan 19, 2019.

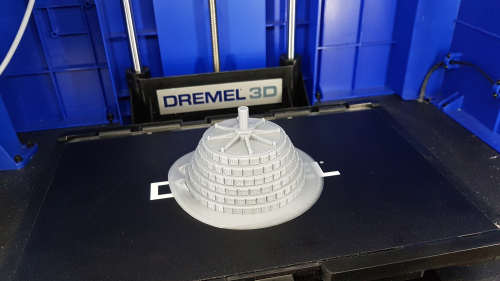

153325

Since the roof was not to be made in a mold, next step was to make it as positive print from the start. Previous I had already made a drawing for the base, since that was the easiest way to get it right. Remained only walls and the boom / arm, left to make in a none 3D fashion. Then I thought, way not print the hole shebang .. ? Said and done, here is the rest drawings I made this evening while the base was printed.

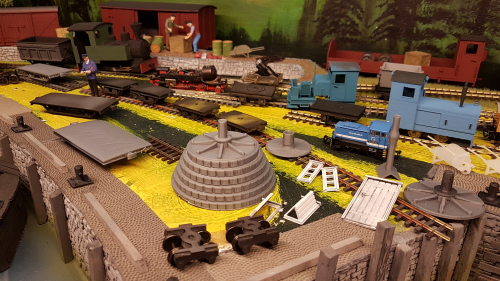

153738

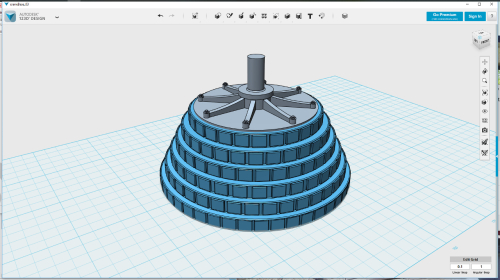

base

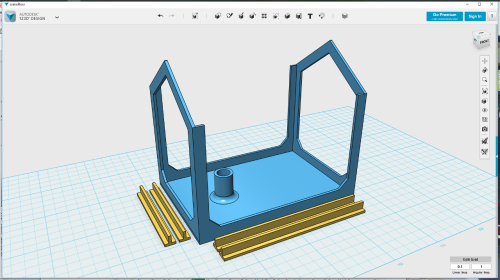

frame

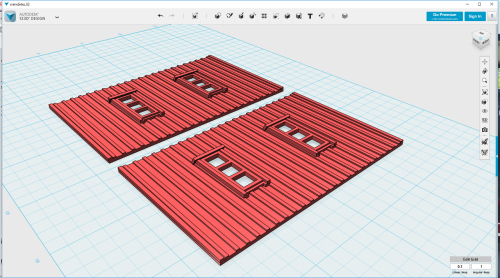

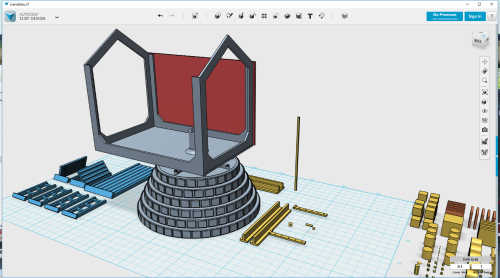

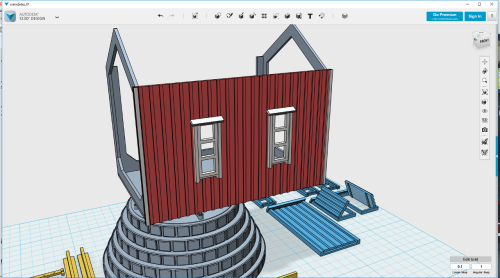

sides

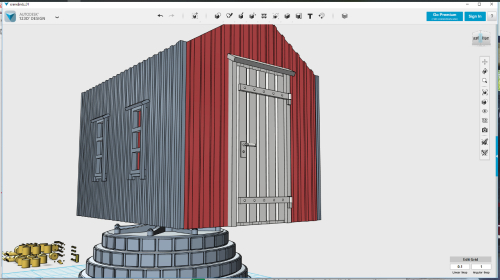

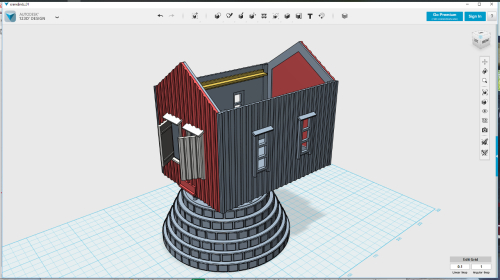

ends

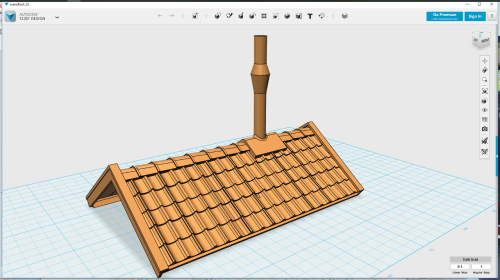

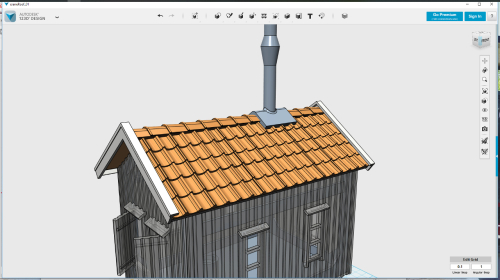

roof

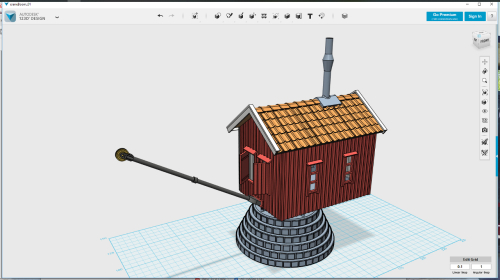

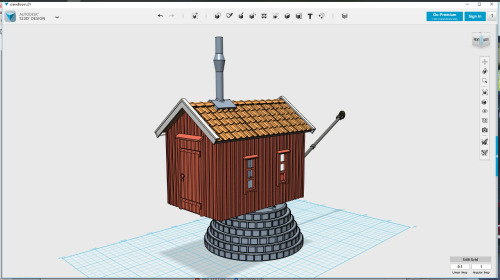

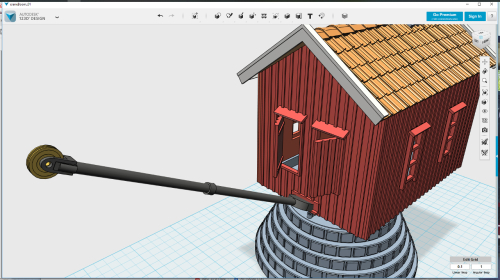

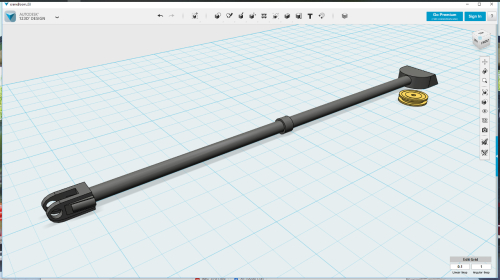

boom arm

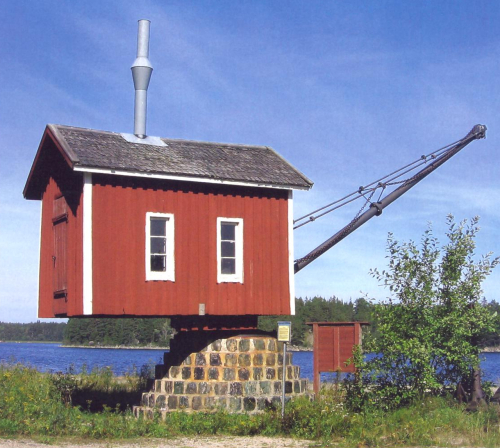

the real deal, Galtströms Crane
